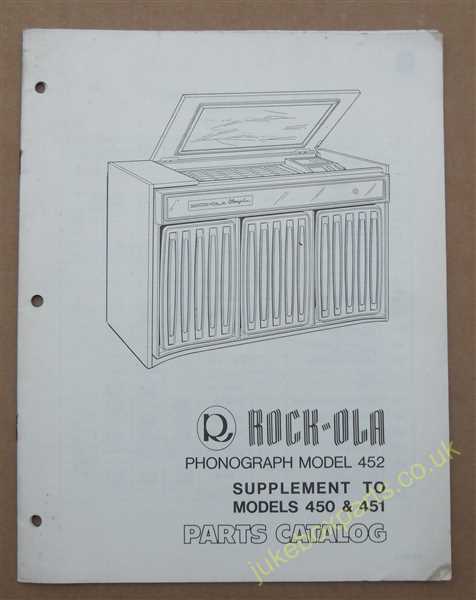

• Rock-Ola 452 Parts Catalog Supplement
• 2nd Hand Used Original Manual
• Supplement to Models 450 & 451

This supplement contains cabinet & related parts for Model 452 only.

All other service items are identical to parts listed in the model 450/451 Parts Catalog with the following exceptions

Rejector (Coin Acceptors) 50c - 45860

Rejector Housing Assembly - No 45042-A

Lock & Key - No ST-7379

Key Only - No ST-7379K

Amplifier Assembly New Part No 47760-1A

Power Distribution Assembly:-

USA 117 VAC No 48100-1A

Canada 117 VAC No 48110-1A

Europe 220/240 VAc No 48105-1A

Japan 100/117 VAC No 48095-1A

Table of Content

• Cabinet & Related Parts
• Front Door Assembly
• Dome Assembly
• Push Button Switch Assembly
• Selector Indicator Lite Box Wiring Diagram
• Speaker Wiring Diagram
