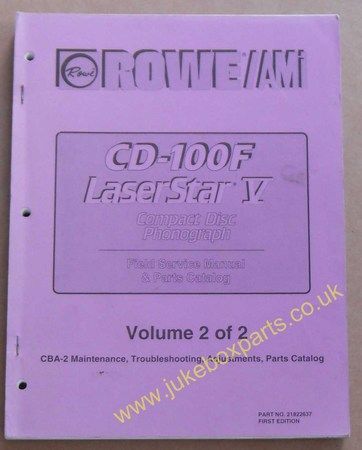

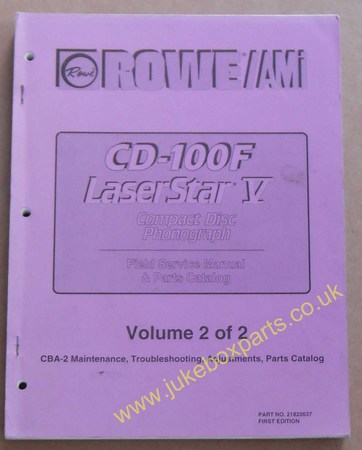

Rowe-Ami CD-100F LaserStar V Field Service Manual & Parts (USM381)

Rowe-Ami CD-100F LaserStar V Field Service Manual & Parts (USM381)
  • Click to enlarge

£25.00



Product Information
Specification
  • Rowe-Ami CD-100F LaserStar V Field Service Manual & Parts Catalogue Volume 2 of 2
  • 2nd Hand Used Manual

Contents

  • Section 4 - CBA-2 Maintenance - covers Equipment Description, Bill Acceptor Logic Board, Functional Description, Routine Maintenance, Cleaning & Lubrication, Mechanical Adjustment, Removal & Replacement Procedures
  • Section 5 - Troubleshooting - covers Introduction, Troubleshooting Topics, Replacing the CCC Eprom / Factory Default, Free Play, CD Module Functions, Sequence of Operation, Status Lamps, Errors & Warnings, Error & Warning Summary, Disc Conditions, Troubleshooting Charts, Sound System Quick Check, Components Lists
  • Section 6 - Mechanical Adjustmenst - covers Lubrication, Unscheduled Maintenance, Mechanism Maintenance & Adjustments, Title Page Assembly Adjustments
  • Section 7 - Miscellaneous - covers CD-100F Specifications, Transformer Package, Door Lighting, Fuses & Circuit Breakers, Resistor Code Chart
  • Section8 - Parts Catalogue - covers CD-100F Code Sheet, Introduction, Parts Catalog, Accessory Equipment





Product CodeUSM381
Stock Level1
ConditionUsed
Weight0.88kg
