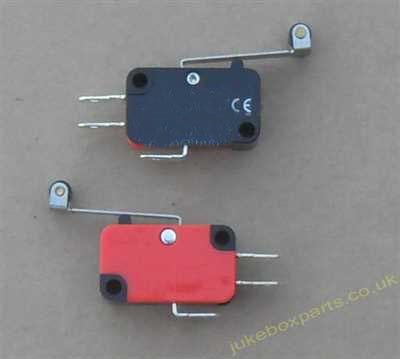

Microswitch Fitted With Long Arm Roller Lever (MS08)

Microswitch Fitted With Long Arm Roller Lever (MS08)
  • Click to enlarge

£3.00

(Quantity discounts available)


Product Information
Specification
Quantity Discounts
  • Microswitch Fitted With 26mm Roller Lever
  • Replacement Rock-ola Microswitch - Original Part Number 43414
  • Specification
  • Rating Load: 15A 1/2HP 125/250VAC; 0.6A/125VDC, 0.3A/250VDC
  • Operation speed: 0.1mm-1m/s
  • Contact resistance: 15m Ohm max. (initial)
  • Insulation resistance: 100m Ohm min. (at DC500V)
  • Dielectric strength: 1,000 VAC 50/60 Hz for 1minute
  • Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
  • Operating temperature: -25~+80°C
  • Contact Form: SPDT NO+NC
  • Overall size: 49x21x10mm/1.93x0.83x0.39inch(L*W*H)
  • 4.8 mm Terminals
  • New Unused
Product CodeMS08
ConditionNew
Weight0.005kg

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1£3.00
5+£2.50
