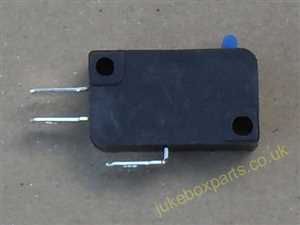

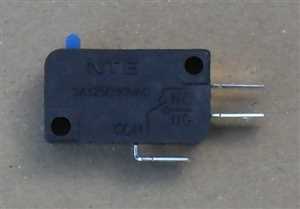

Microswitch Terminals 4.8 mm (MS01)

Microswitch Terminals 4.8 mm (MS01)
  • Click to enlarge
  • Click to enlarge


(Quantity discounts available)


Product Information
Quantity Discounts
  • Microswitch V3 Button
  • Actuator Type:Button
  • Contact Configuration:SPDT
  • Microswitch Type:Standard
  • Switch Operation:SPDT
  • Contact Current @ Contact Voltage AC Max:16A
  • Contact Current AC Max:16A
  • Contact Material:Silver
  • Contact Resistance:100mohm
  • Contact Voltage AC Max:250V
  • Differential Travel Max:0.2mm
  • External Depth:10.3mm
  • External Length / Height:15.9mm
  • External Width:27.8mm
  • Fixing Centres LxW:22.2 x 10.3 mm
  • Operating Force Max:200gf
  • Release Force:50gf
  • Terminal Material:Silver plated brass
  • Terminal Type:4.8mm Quick Connect
  • Mainly Used On Rowe-Ami
  • New Unused
Product CodeMS01
