NSM Technical Manual for CD Hide Away ES1V Technology (USM159)

NSM Technical Manual for CD Hide Away ES1V Technology (USM159)
  • Click to enlarge
  • Click to enlarge

£30.00


Product Information
Specification
  • NSM Technical Manual for CD Hide Away ES1V Technology
  • 2nd Hand Used Manual

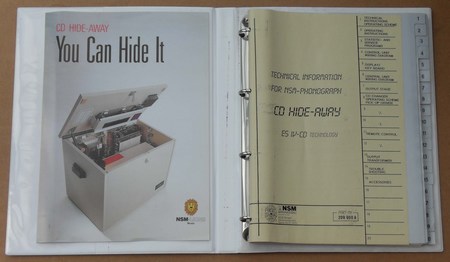

Contents

  • Technical Instructions Operating Scheme
  • Operating Instructions
  • Statistics & Service Programs
  • Control Unit Wiring Diagram
  • Display / Key Board
  • Central Unit Wiring Diagram
  • Output Stage
  • CD-Changer Operating Scheme Pick Up Driver
  • Remote Control
  • Output Transformer
  • Trouble Shooting
  • Accessories



Product Code USM159
Stock Level 1
Condition Used
Weight 1.35kg
